UPS Input/Output Distribution Cabinet
GDH NR System Power Distribution for UPS Infrastructure (20KW-400KW)
UPS Input/Output Distribution Cabinet
Conluxs UPS I/O Distribution Cabinet · GDH NR System · 20KW-400KW
Product Overview

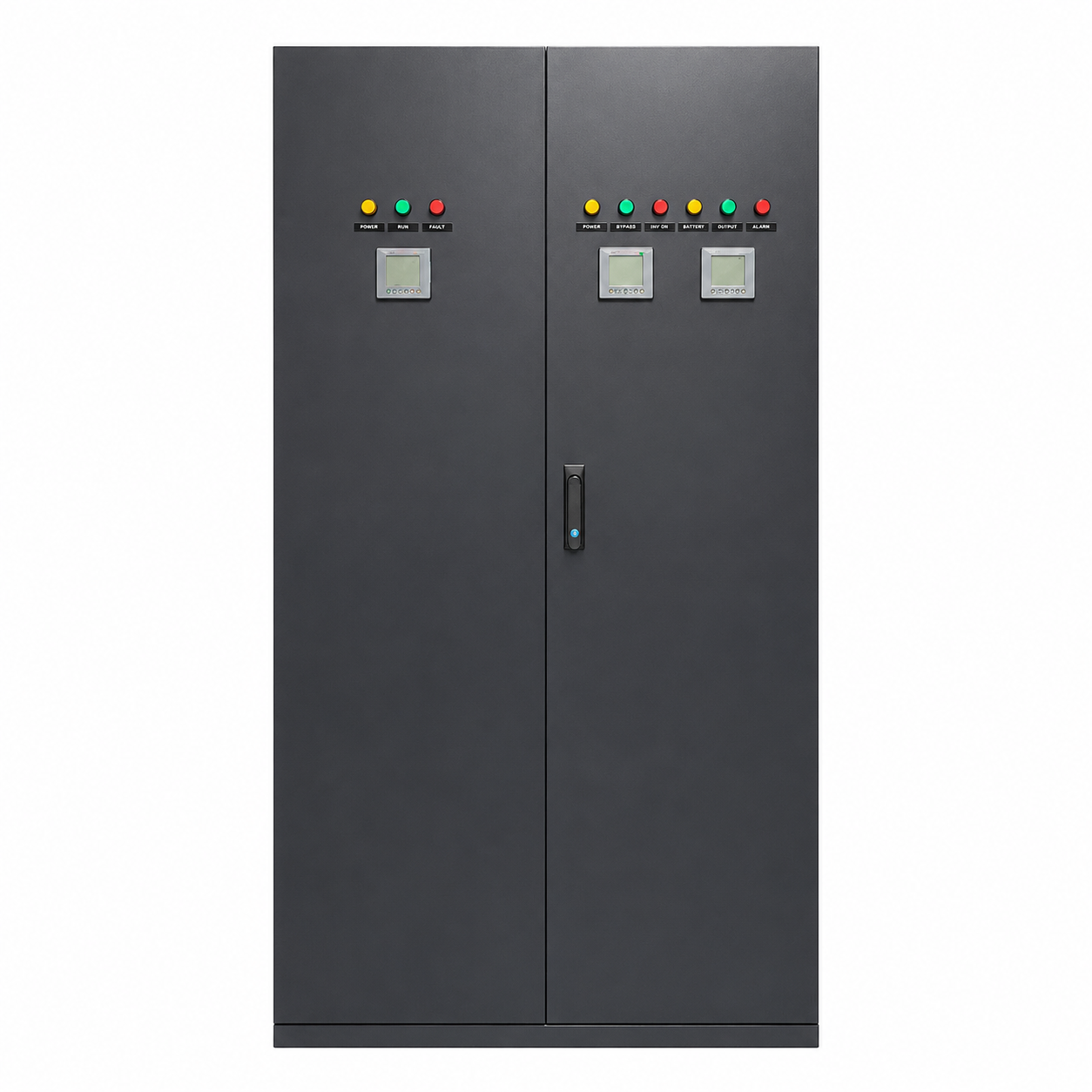

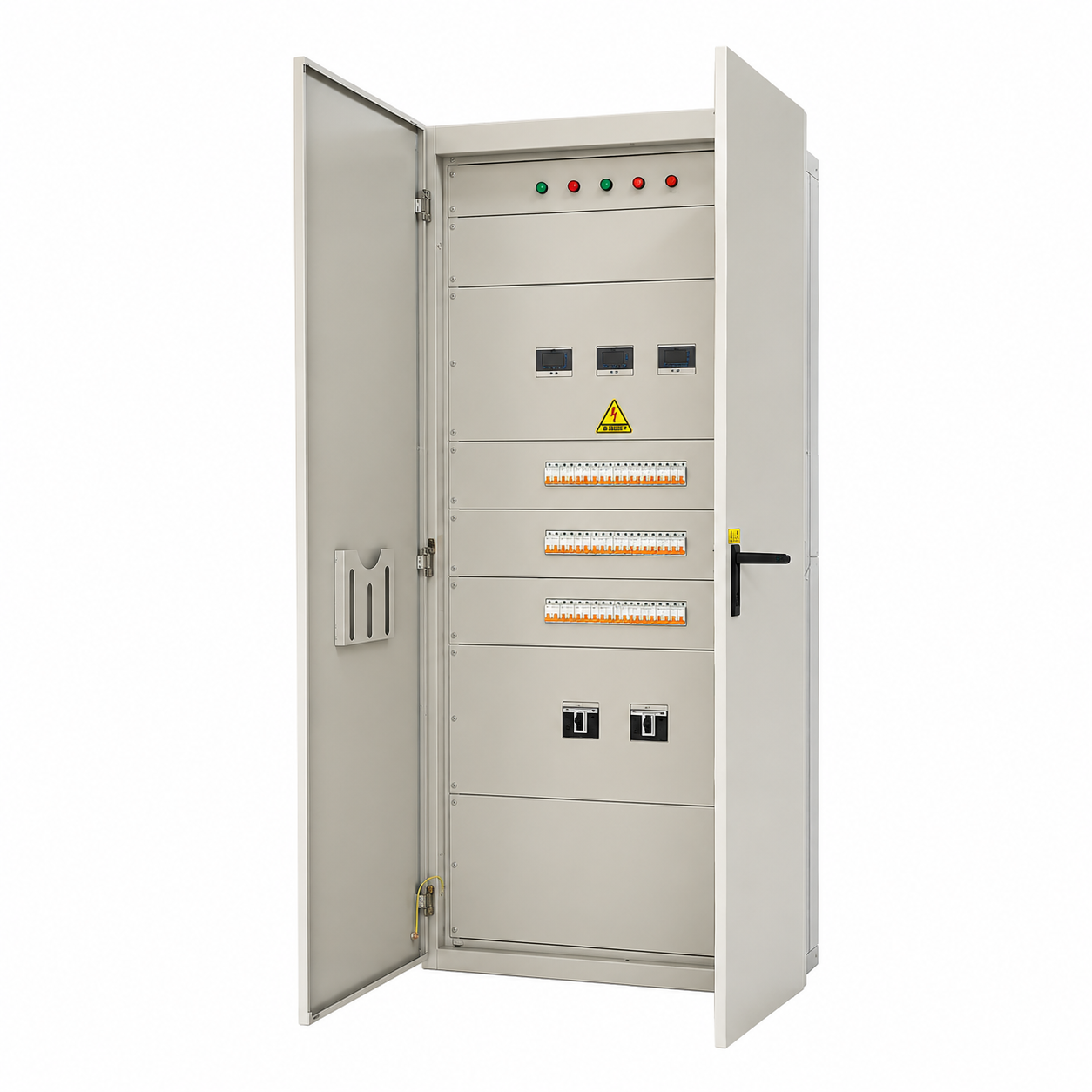

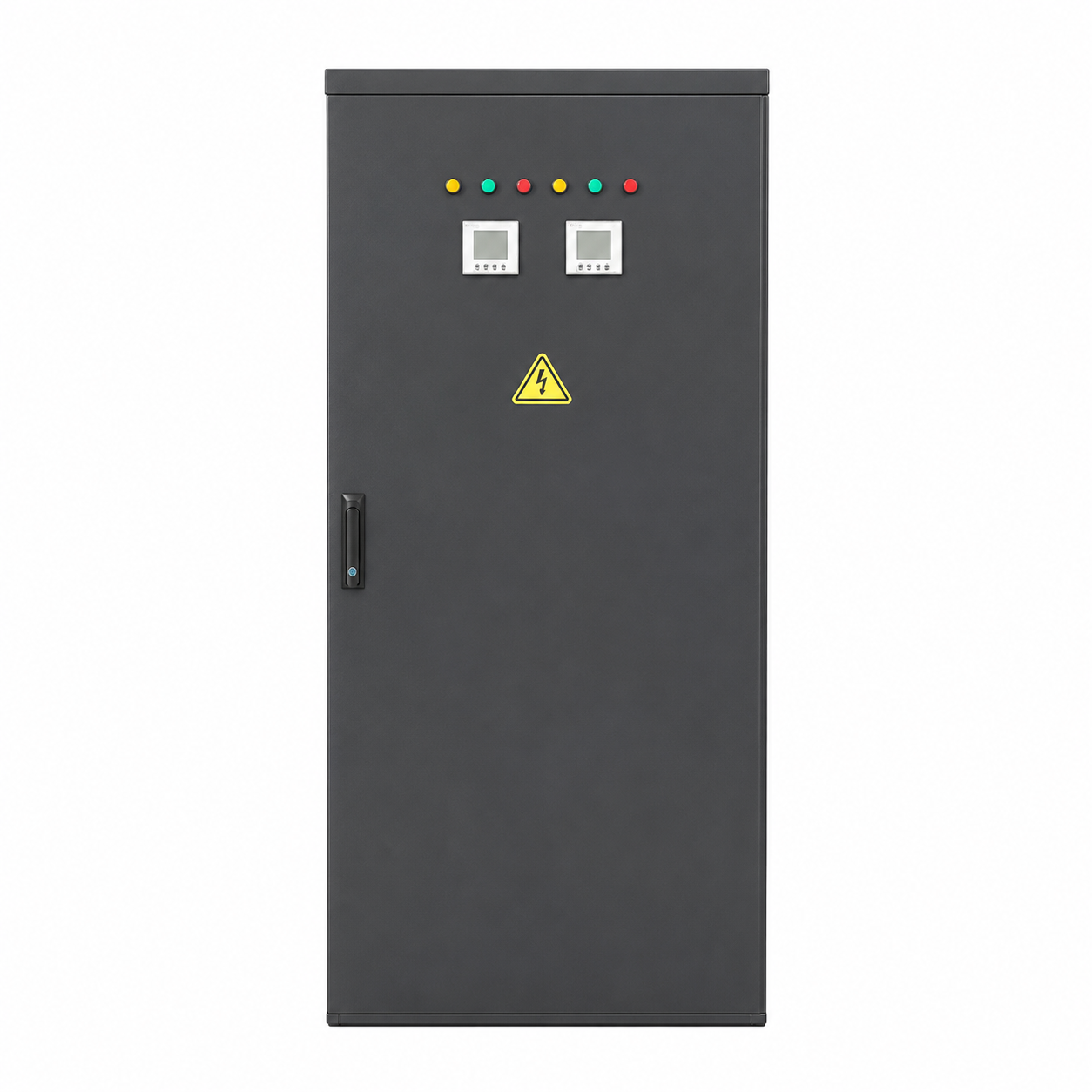

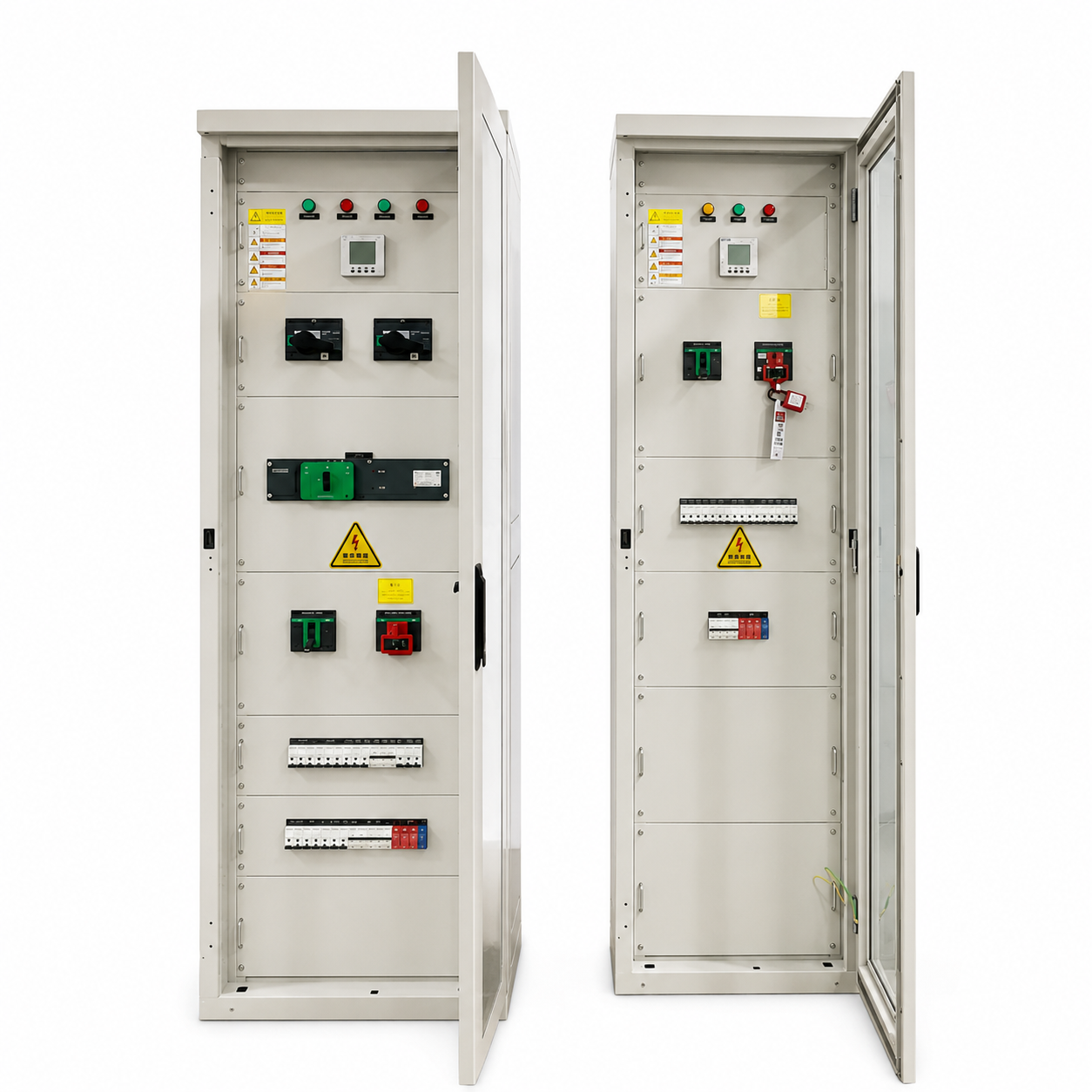

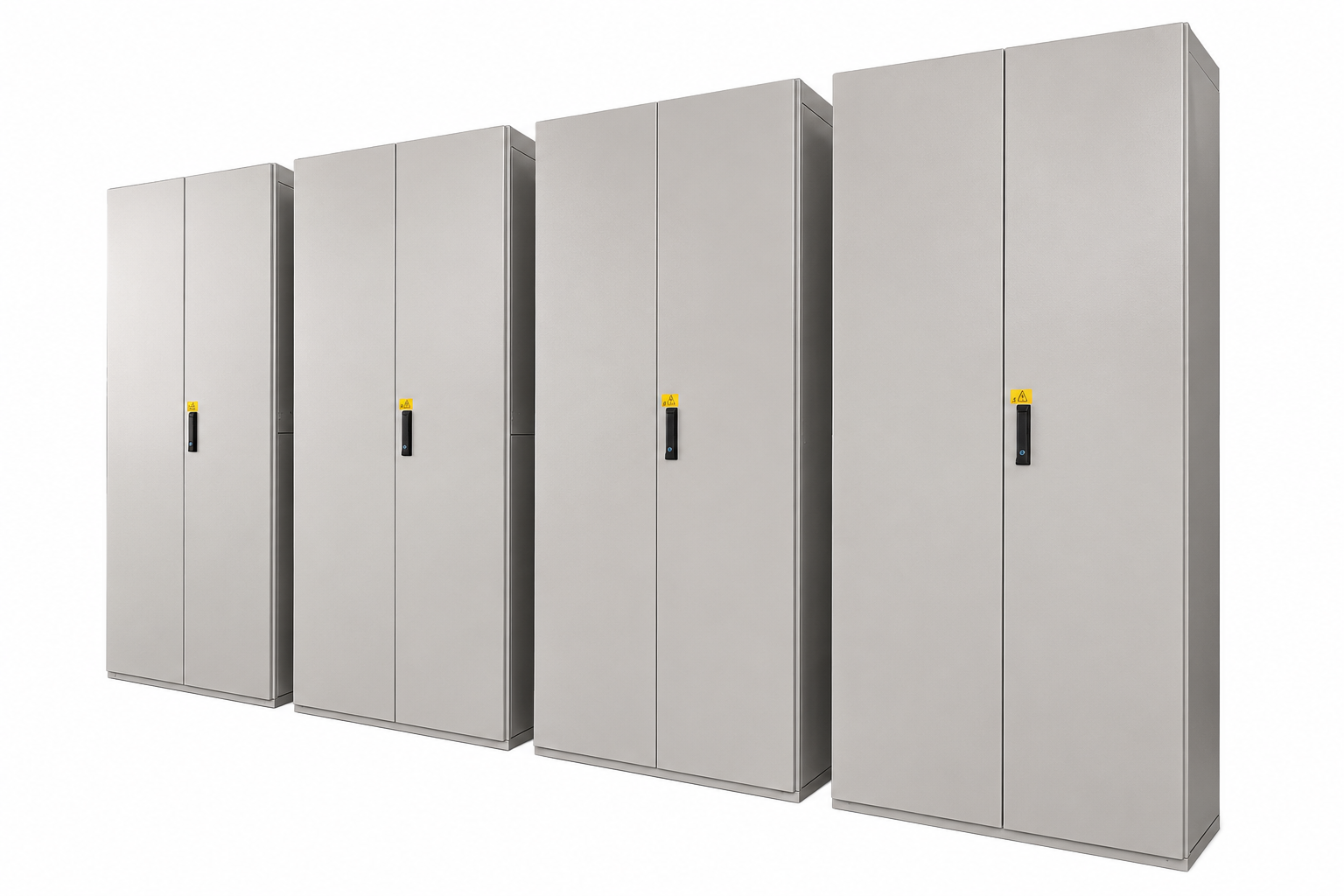

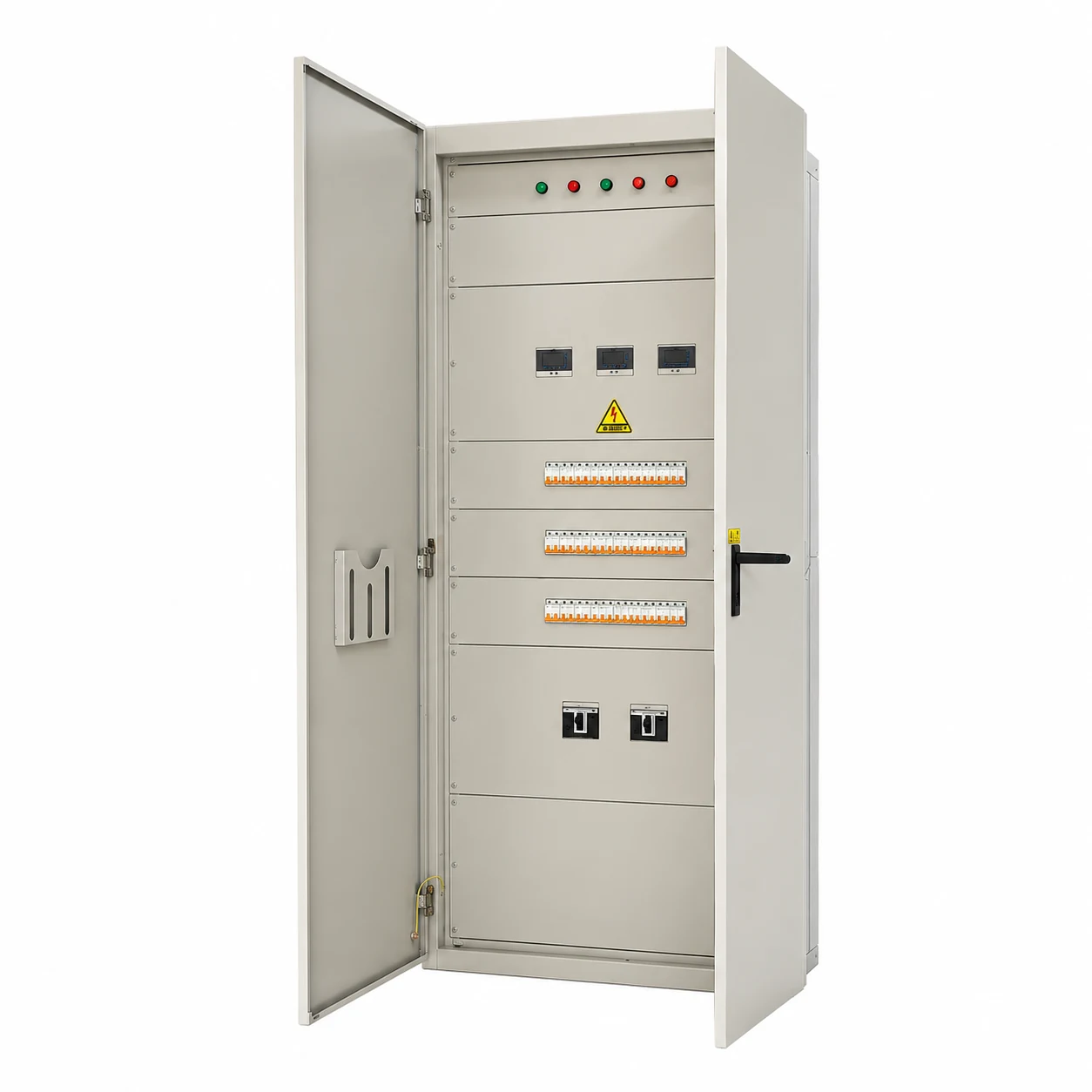

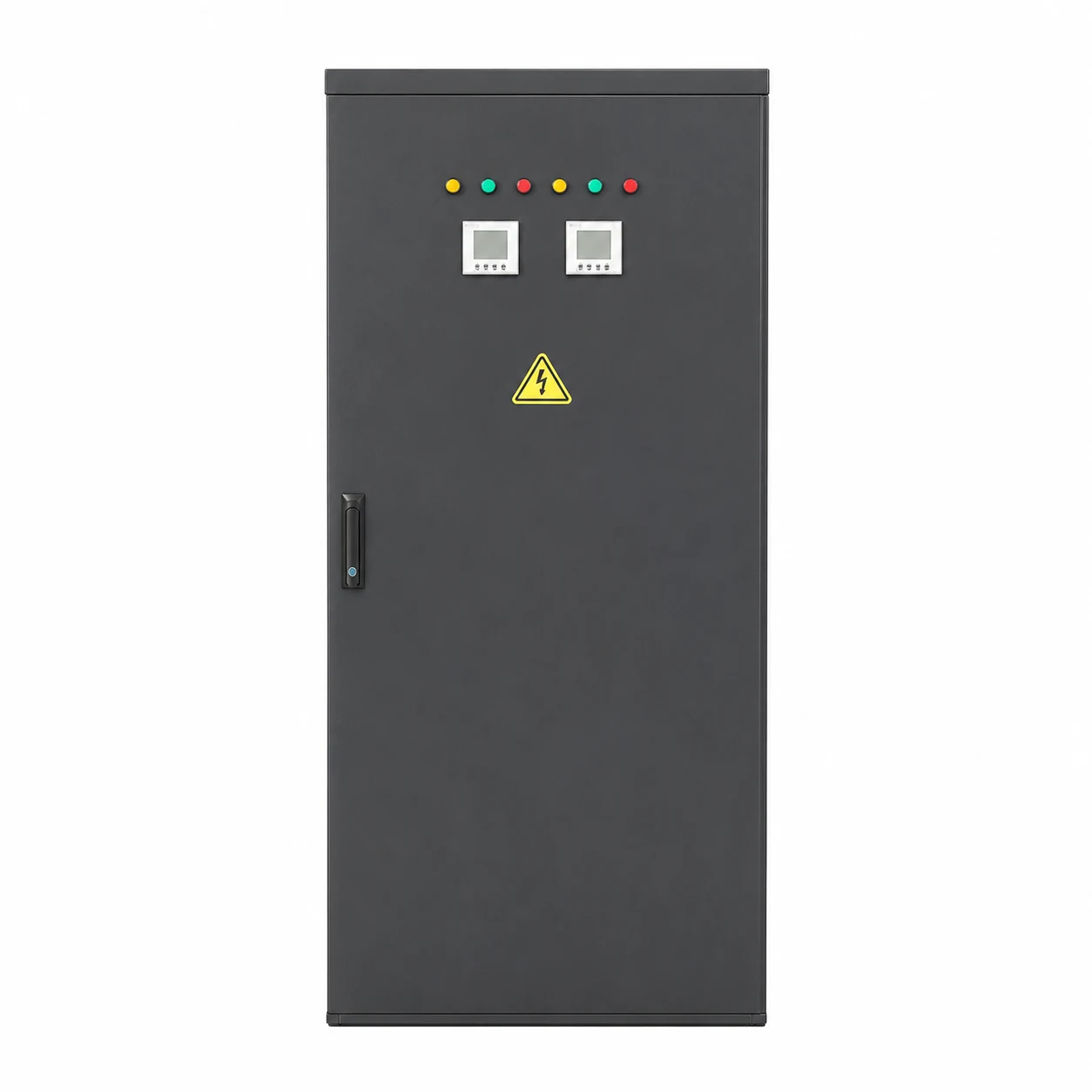

The Conluxs UPS Input/Output Distribution Cabinet is a specialized power distribution solution built on the GDH NR system standard. Supporting power ranges from 20KW to 400KW, it provides reliable power routing between UPS systems and critical loads in data centers, telecom facilities, and industrial sites. Each cabinet features dual-source input capability with automatic and manual bypass options.
Key Technical Features
- GDH NR Standard: Engineered to GDH low-voltage distribution standards with enhanced reliability for UPS applications.
- Dual Input Capability: Supports main and bypass input sources with interlocked transfer for maintenance scenarios.
- Comprehensive Metering: Digital multifunction meters per feeder with Modbus RTU communication for DCIM/BMS integration.
- Selective Coordination: Cascaded breaker protection with full selective coordination between upstream UPS and downstream loads.
Technical Specifications
Technical Specifications
| Parameter | Specification |
|---|---|
| System Standard | GDH NR |
| Power Range | 20KW - 400KW |
| Rated Voltage | AC 380V / 400V |
| Rated Frequency | 50Hz / 60Hz |
| Rated Current (Main) | Up to 6300A |
| Input Configuration | Dual Source (Main + Bypass) |
| Protection Rating | IP30 / IP40 (Indoor) |
| Communication | Modbus RTU / Dry Contact |
