Project Description

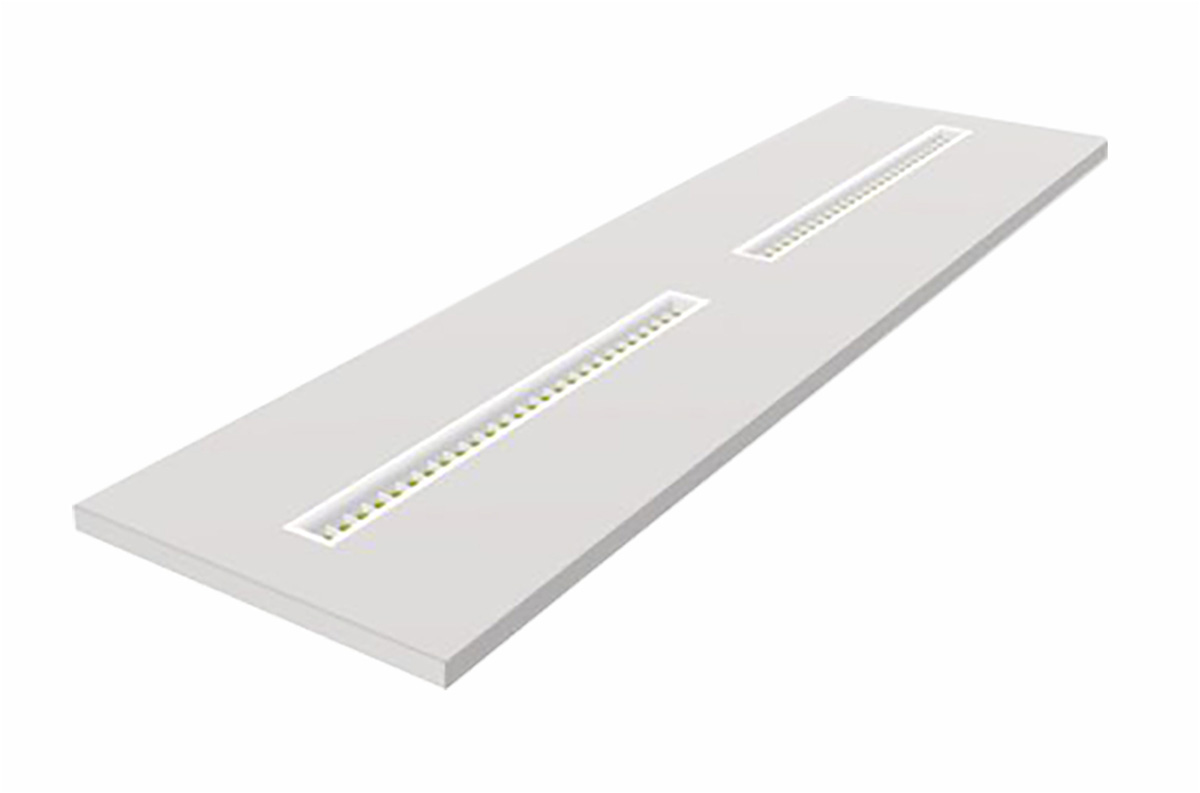

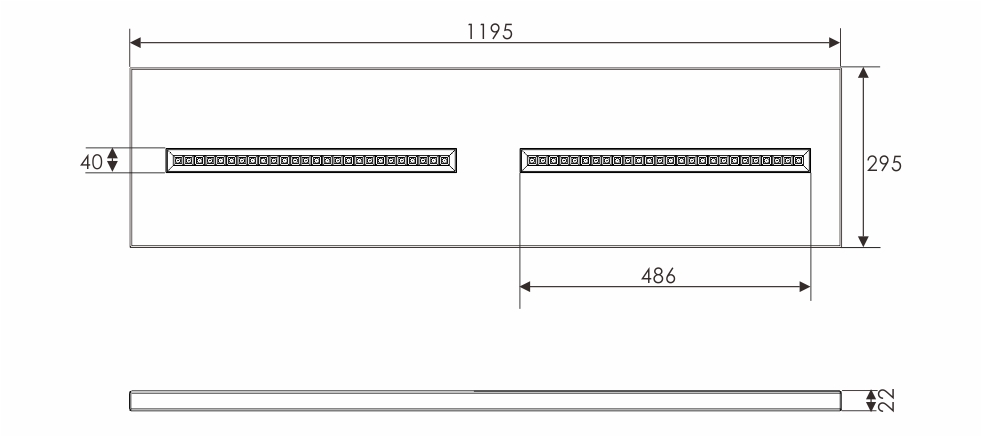

Product Code: 35W 295X1195MM LED Troffer light | CL-TO-105-35W-14-03
Key Features
- Anti-glare design;UGR<19,Up to 105lm/W
- Dali/0-10V/PWM/Traic Dimming available
- Modern simplistic design
- Emergency Backup options available.
- Long Lifetime rating of over 55,000hrs
- Available in White, Silver finishes
- Ideal for both commercial or residential purposes
Product Description
The Lorents LED troffer light is an exceptionally high performance retrofit type LED light.
UGR<19 With our anti-glare patent reflector,our LED troffer light will provide more even light and protect humen eyes from glareing problem.
Conluxs Lighting range of LED troffer light uses SANAN LED technology which gives them excellent lumen output. They can be quickly and easily installed, hanging or recessed, and can even in be used in smaller void suspended ceilings. Perfect for use in working environments that need good light, our Townes LED troffer light provide a high brightness and even light output that is equivalent to standard fluorescents, but with no flicker, so eye strain is greatly reduced.
Coupled with LIFUD drivers,Conluxs’s LED Troffer lights consume a fraction of the energy of fluorescents (including ballasts), which reduces costs still further, and as they contain no harmful mercury, disposal is easier and safer and so Conluxs’s LED Troffer lights are altogether more environmentally friendly than fluorescent options.
Specification
Lighting Performance
Colour Temperature | Lumen Output | LED Quantity | CRI | Minimum Lifetime |
---|---|---|---|---|
3000K, 4000K, 5000K | 3675lm | 104 | >80 | 55,000hrs |
N.B Lumen values quoted on Pure White (5000K)
Input Data
Drive Current | Power Supply Type | Power Factor | Input Volatge |
---|---|---|---|
1080mA | Constant Current | >0.9 | 25-38 V DC |
Operating Details
Power | Ambient Temperature Range |
---|---|
35W | -20 to +50 °C |
Physical Details
Weight | Finish | Ingress Protection |
---|---|---|
5000g (±10g) | White,Silver | IP20 |
Options
Single LED Colours | Optics |
---|---|
Warm White, Neutral White, Pure White | 80° |
Bundled Driver Specification
Input | Output Current | Output Voltage |
---|---|---|
200-240V AC | 1080mA | 25-38V DC |
Available Colours
3000K
4000K
5000K
Installation Options
Recessed
Ceiling Mount
Pendant
Ceiling Embedded
Control Options
SWITCH
0/1-10V
TRIAC
DALI
PWM
EMERGENCY
